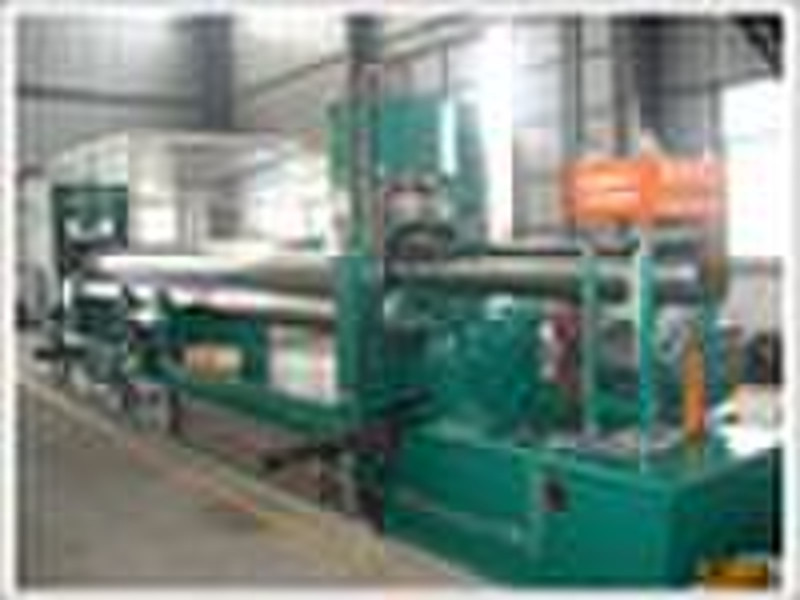

hydraulic rolling machine

2, structure and main parts2-1 upper rolls lift device It driven by double cylinders, main cylinder working pressure is 19.5 Mpa, Upper roll two ends fit with double self-aligning bearing to reduce the friction and motor power. The material of upper roll is 45# forging with heat treatment . 2-2 down roll drive device. The material of down roll is 45# forging with heat treatment. Level motion motor supply the power, through the strap drive to CWU worm wheel and pole speed reducer. Upper roll level motion drove by worm wheel and pole to finish bending in dissymmetry form. 2-3 tuning device composed of one hydraulic cylinder, the joint pole drive the bearing seat of side rolls to tuning and close, the pressure come from hydraulic station. 2-4 upper rolls balance device lift upper rolls to upper limit position, the balance frame press the upper rolls end , then upper rolls in balance position through bearing seat support and balance frame press, it is easy to keep tuning bearing seat to tuning and close. there is limit switch to check upper rolls position. 2-5 bottom base. Adopted steel welded frame, vibrating treatment of ageing for removal of internal stress with good rigidity and stability. and it is easy for installation and transformation. 2-6 hydraulic system Composed of Y series motor, gear pump , valves , oil tank, pipe and so on. Max pressure is 19.5 Mpa , the valves adopted from Taiwan. 3-3 electricity system Composed of electrical box, operation table , manual button . the power is 380V50HZ adopted PLC control system code with longevity easily operate. Whole bending process can read from the indicator setting on the control box. 4, inspection JB/T8796-1998 Standard 5,delivery time 45 days 6, Serve Guarantee one year and offer serve for ever. 8, payment terms 30% T/T as advance, 70%T/T before delivery. 9, supply range 9-1, main machine 9-2,hydraulic device 9-3,electricity device 9-4,technical documents include operation manual, check results, packing list, quality certificate, electrical drawings, hydraulic drawings
